Elevate Your Network Infrastructure with Zero-Hassle Aerial Deployment!
Engineered for reliability and efficiency, the SZYY-S26058A ADSS Cable by Shenzhen Youyuan Optical Communication is the ultimate solution for modern aerial fiber networks. Designed specifically for spans up to 60 meters, this cable eliminates the need for messenger wires, allowing for direct installation on utility poles. Save significantly on installation and maintenance costs while ensuring high-speed data transmission across vast distances.
✨ Key Features & Benefits
- All-Dielectric & Self-Supporting (ADSS)

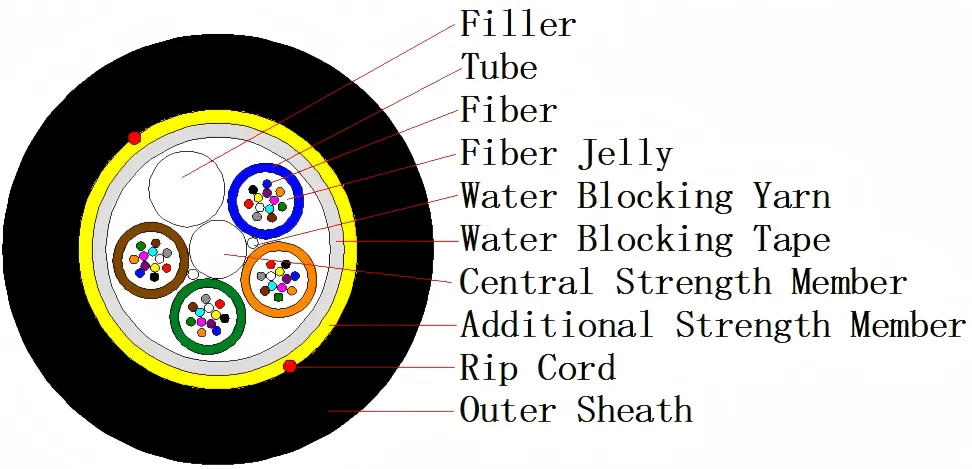

Built with a high-strength FRP (Fiberglass Reinforced Plastic) central strength member and Aramid yarn as the tensile element, this cable can independently bear the mechanical load of aerial installation. It is completely non-metallic, making it immune to electromagnetic interference (EMI) and safe for deployment near high-voltage power lines.
- Scalable Fiber Capacity
Available in a wide range of configurations from 4 to 216 cores, this cable is perfect for various scenarios-from small-scale FTTx deployments to large backbone networks.
- Premium G.652.D Single-Mode Fibers
Utilizing ITU-T G.652.D standard fibers, it guarantees ultra-low attenuation (≤0.22 dB/km @ 1550nm) and excellent dispersion performance. This ensures crystal-clear signal transmission for both 1310nm and 1550nm wavelengths, supporting high-bandwidth applications with minimal loss.
- Extreme Durability & 25-Year Lifespan
The cable is encased in a Black HDPE (High-Density Polyethylene) sheath fortified with UV protection. Rated for tropical environments (-10°C to +70°C), it resists cracking, aging, and weather damage, ensuring stable operation for over 25 years.
- Superior Water Resistance
Featuring a robust water-blocking system with PBT loose tubes, water-blocking tape, and swelling yarns, the cable passes rigorous 1-meter water head tests, preventing moisture ingress and protecting fiber integrity.
📋 Technical Specification Summary
| Feature | Specification |
|---|---|
| Model No. | SZYY-S26058A-ADSS |
| Fiber Type | Single Mode G.652.D |
| Core Count | 4F ~ 216F |
| Max Span | 60m (Initial Sag: 0.5%) |
| Tensile Strength | 1800N ~ Section |
| Sheath Material | Black HDPE (UV Resistant) |
| Operating Temp. | -10°C ~ +70°C |
| Standards | IEC 60794, ITU-T G.652.D |
🏗️ Ideal Applications
Power Utility Networks: Ideal for OPGW replacement or secondary circuits on transmission towers.
Urban & Rural Broadband: Perfect for rapid deployment in areas where trenching is impractical.
Surveillance Systems: Reliable long-haul transmission for city security and traffic monitoring.
Choose the SZYY-S26058A ADSS Cable for a "Fit-and-Forget" Network Foundation!
💡 Pro Tip: Available on standard 4,000-meter drums with customizable laser marking (including production date and meter readings) for easy project management and traceability.
💡 Why Buy This Product? (Sales Pitch)
Cost-Effective Installation: By removing the need for separate support wires and complex hardware, you cut down labor and material costs significantly.
Safety First: The dielectric construction ensures 100% electrical isolation, providing peace of mind during installation and operation near power sources.
Shenzhen Quality: Manufactured in Shenzhen using advanced technology and strict quality control (ISO/IEC standards), this cable is built to perform in the harshest global environments.
Contact us now for a wholesale quote and take your network to new heights!
