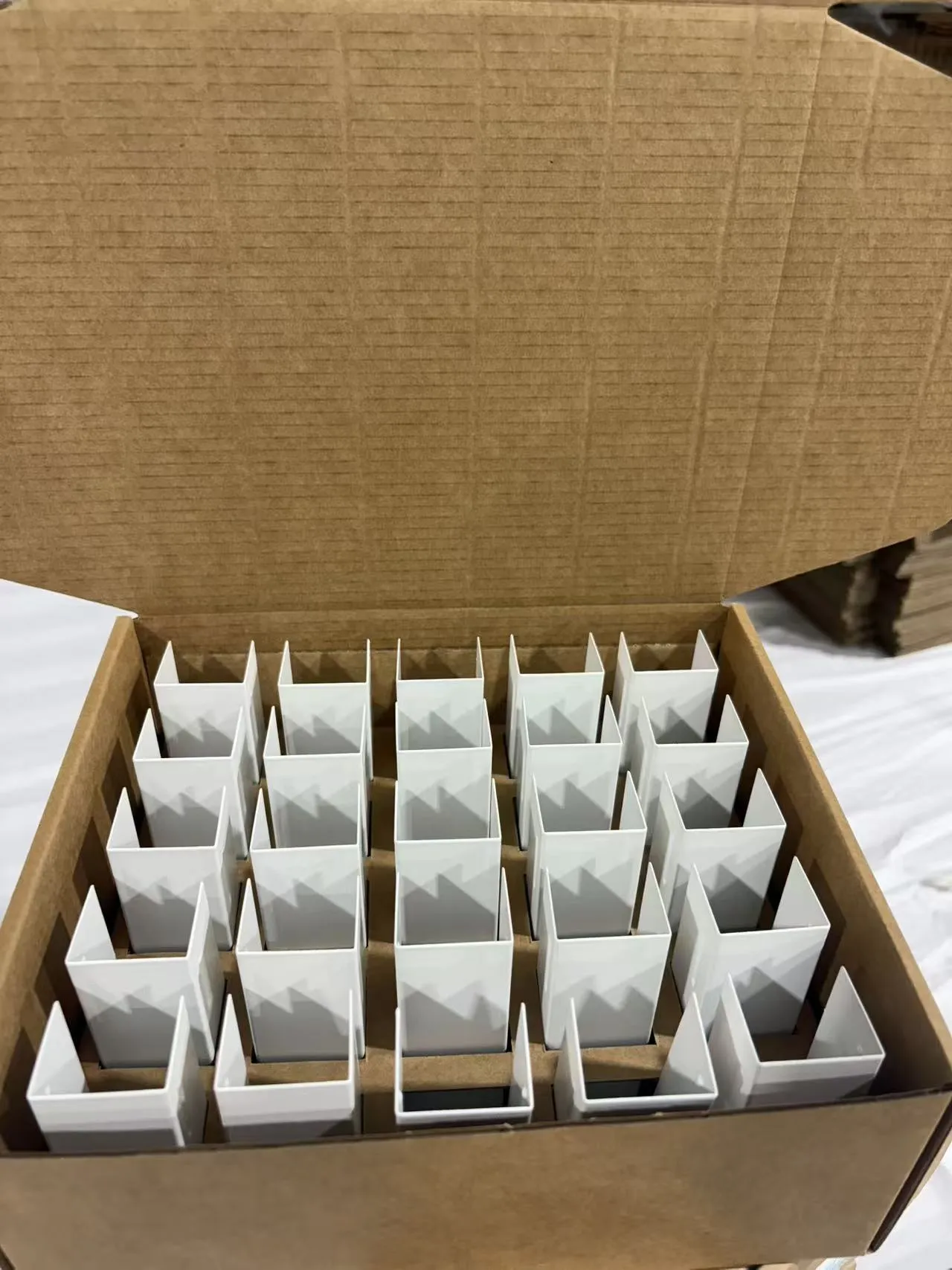

Metal Duct End Fitting

Metal Duct End Fitting: The Professional Finish for Safe & Secure Trunking

In the world of structured cabling and electrical installation, how a run of trunking ends is just as important as how it runs. Exposed, sharp metal edges at the termination of a cable duct pose safety risks and look unprofessional.

The Metal Duct End Fitting is the essential accessory designed to solve this problem, providing a safe, aesthetic, and durable closure to your wiring systems.

Engineered to perfection, this fitting snaps or screws onto the open end of our metal trunking, capping off the installation with a smooth, rounded profile.

Whether you are terminating a run at a distribution board or closing off a spur in an office, the Metal Duct End Fitting ensures a polished result that meets the highest standards of safety and design.

🛡️ Safety Meets Aesthetic Excellence

The primary function of the Metal Duct End Fitting is to eliminate hazards while enhancing the visual flow of the installation.

Elimination of Sharp Edges: Raw cut metal trunking often leaves burrs or sharp edges that can slice through cable insulation or injure installers. Our end fitting covers these edges completely, providing a smooth, rolled lip that is safe to touch and safe for cables.

Seamless Visual Termination: Finished in the industry-standard RAL 9016 Traffic White, the powder coating matches our trunking perfectly. It transforms a raw cut into a deliberate design element, making the installation look factory-finished rather than site-modified.

Dust and Debris Protection: By capping the open end, the fitting prevents dust, insects, and moisture from entering the trunking system from the termination point, keeping the internal cabling clean and dry.

⚙️ Technical Specifications

We believe in providing precise data to ensure compatibility with your specific project requirements.

💡 Key Features & Functional Advantages

Why is the DT-MDEF series the preferred choice for professional contractors?

Cable Retention Design: Unlike simple flat caps, our Metal Duct End Fitting features a specialized internal lip. This helps hold the cables in place as they exit the trunking, preventing them from falling out or becoming disorganized near the termination point.

Rapid Installation: Time is a critical factor on job sites. These fittings are designed for speed. They can often be snapped into place by hand, or secured with a single screw for a permanent fixture, significantly reducing installation time compared to fabricating custom end plates.

Robust Mechanical Strength: Constructed from the same high-quality steel as the trunking itself, the DT-MDEF offers superior impact resistance compared to plastic alternatives. It will not crack under stress and maintains its shape over years of use.

Fire Safety Compliance: The materials used in the coating and the metal substrate offer high thermal resistance. In the event of a short circuit, the fitting will not contribute to the spread of flames, adhering to strict fire safety protocols required in commercial buildings.

🏗️ Applications & Use Cases

The versatility of the Metal Duct End Fitting makes it suitable for a wide range of environments:

Industrial Control Panels: Used to terminate trunking runs that feed into control cabinets, ensuring that no sharp metal is exposed near sensitive electronics or maintenance personnel.

Office Renovations: Essential for surface-mounted wiring where aesthetics are paramount. It provides a "finished" look to spur lines that end at a desk or meeting room.

Healthcare Facilities: In hospitals and clinics, hygiene is key. The smooth, sealed end prevents dust accumulation at the trunking terminus, aiding in maintaining sterile environments.

Data Centers: Used to neatly terminate cable runs that drop down to server racks, ensuring that fiber and copper cables are protected right up to the point of entry.

✅ Quality Assurance & Global Standards

Our commitment to quality ensures that every Metal Duct End Fitting leaving our facility is flawless.

ISO 9001 Certified Manufacturing: Our production lines adhere to rigorous international quality management systems.

Coating Thickness Testing: Every batch is tested to ensure the powder coating meets the required microns for corrosion resistance and durability.

Dimensional Accuracy: We use precision stamping molds to ensure that the DT-MDEF fits the trunking with a snug, rattle-free connection every time.

Note: For projects requiring custom colors to match specific interior design themes (e.g., RAL 7035 Grey or custom corporate colors), please contact our sales team for MOQ details.
